TMT Power Supplies

The TMT Power Supplies we offer are designed to deliver stable, efficient, and reliable power to LED lighting systems, ensuring long lifespan and consistent performance.

We offer multiple power supply options based on the power load needed for your project.

Features:

  • 5-year and 7-year warranty options
  • Waterproof (IP 68) and UL Dry / Damp / Wet Locations
  • 12V and 24V options
  • Active Power Factor Correction
  • High Efficiency up to 88%
  • Constant Voltage Output
TMT-105673 Power Supply

How to Order

Email us at info@abcsignproducts.com
or call 800-248-9889 for pricing


NEW POWER SUPPLY - 12V - 5 Years Product and Labor
Product Description Part Number UL Model Number Output Power Dimensions
LDM60-12-C21
60W 12V Class 2		 TMT-105675 LDM60-12-C21 12V 5A - 1 Output 5.84 x 2.11 x 1.18

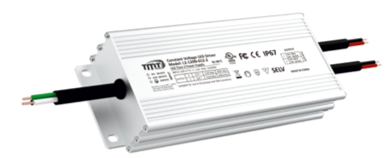

LDM120P-12-C22
120W 12V Class 2		 TMT-107578 LDM150P-1246-C23 12V 5A - 2 Output 6.81 x 2.83 x 1.26
LDM180P-12-C23
180W 12V Class 2		 TMT-107579 LDM150P-1246-C23 12V 5A - 3 Output 9.92 x 2.83 x 1.26

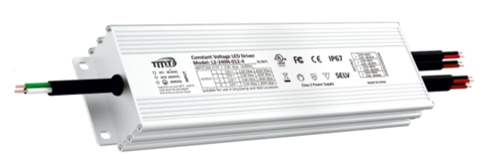

LDM240P-12-C24
240W 12V Class 2		 TMT-107580 LDM240P-1250-C24 12V 5A - 4 Output 11.18 x 2.83 x 1.26
LDM300P-12-C25
300W 12V Class 2		 TMT-107581 LDM240P-1250-C24 12V 5A - 5 Output 11.61 x 2.83 x 1.26
NEW POWER SUPPLY - 24V - 5 Years Product and Labor
Product Description Part Number UL Model Number Output Power Dimensions
LDM100P-24-C21
100W 24V Class 2		 TMT-107743 LDM150P-2423-C23 24V 4A - 1 Output 6.81 x 2.83 x 1.26
LDM200P-24-C22
200W 24V Class 2		 TMT-107582 LDM240P-2425-C24 24V 4A - 2 Output 9.92 x 2.83 x 1.26

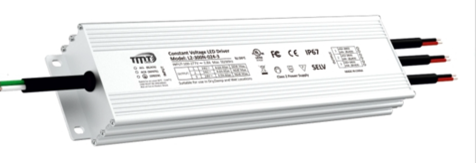

LDM300P-24-C21
300W 24V Class 2		 TMT-107583 LDM240P-2425-C24 24V 4A - 3 Output 11.61 x 2.83 x 1.26
POWER SUPPLY - 12V - 7 Years Product and Labor
Product Description Part Number UL Model Number Output Power Dimensions

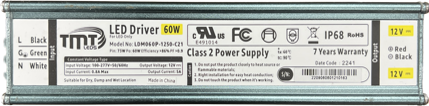

LDM60P-1250-C21
60W 12V Class 2		 TMT-105673 LDM60P-1250-C21 12V 5A - 1 Output 65.5 x 1.65 x 1.34

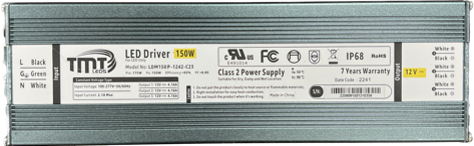

LDM150P-1246-C23
150W 12V Class 2		 TMT-105676 LDM150P-1246-C23 12V 4.6A - 3 Outputs 8.27 x 2.65 x 1.38

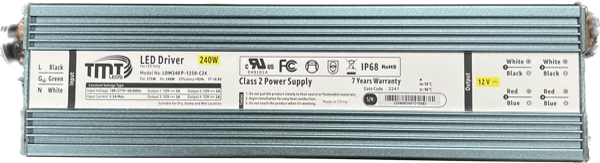

LDM240P-1250-C24
240W 12V Class 2		 TMT-105677 LDM240P-1250-C24 12V 5A - 4 Outputs 9.44 x 2.87 x 1.64
POWER SUPPLY - 24V - 7 Years Product and Labor
Product Description Part Number UL Model Number Output Power Dimensions
LDM60P-1250-C21
60W 24V Class 2		 TMT-105674 LDM60P-1250-C21 24V 2.5A - 1 Output 65.5 x 1.65 x 1.34
LDM150P-2423-C23
150W 24V Class 2		 TMT-105678 LDM150P-2432-C22 24V 2.3A - 3 Output 8.27 x 2.65 x 1.38
