Weld-Free Frames

ABC’s Weld-Free Frames are perfect for small to medium-sized signs. Our corner brackets and corner keys allow for ease of assembly for sign fabricators looking for a weld-free option. Fabricators can also weld these frames if they so choose. These sign frames accommodate flat or formed acrylic and polycarbonate faces or routed aluminum faces.

5" Type IV Frame
The Type IV Frame is designed for weldable or weld-free assembly and finishes at a depth of 5”. It can be used for single and double-faced sign projects and will allow a 2-7/8” pole to pass through.

Thrif-T Frame
ABC’s Thrif-T frame has retainer options that allow it to finish at either 6.5” or 8” deep. It is the only frame offered by ABC that comes in a pre-finished black option (welding assembly not recommended with pre-finished black frame). It is designed for weld-free assembly using our Corner Keys and press-fit Corner Brackets. It is a single-face frame only and will allow a 3.5” pole to pass through.

LED Thin Frame
This is the thinnest profile extruded frame ABC offers and finishes at a 3.5” depth. It is recommended for signs up to about 25 square feet in size. It is a single-face frame only- great for interior applications!

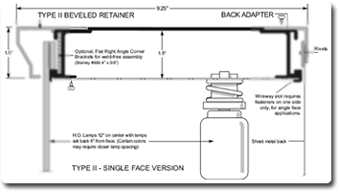

Type II Beveled Retainer

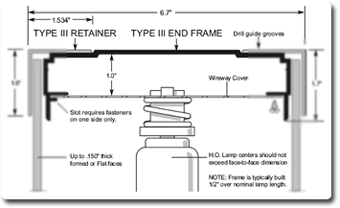

Type III Retainer

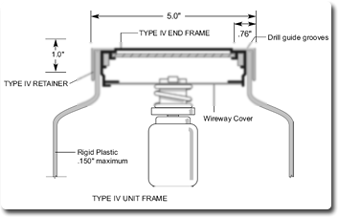

Type IV End Frame

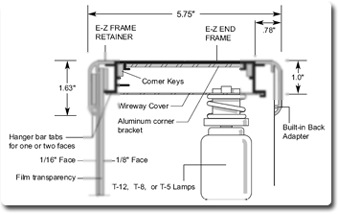

EZ Frame Retainer

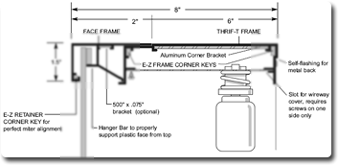

Face Frame
